UV LED Module 280W uv curing 3535 lamp beads high power uv led quartz lens

Brand Name : YM

Model Number : UV LED Module 6881

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV LED Module

Power : 280W

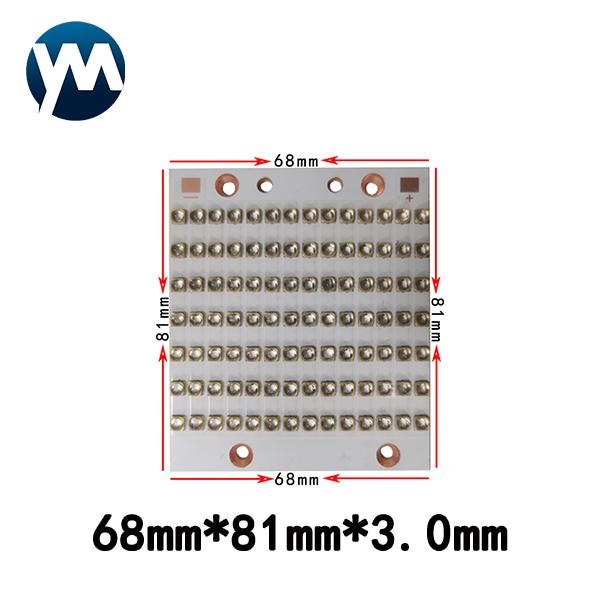

Module Size : 68mm*81mm*3.0mm

Luminous Size : 65mm*60mm

Voltage : 47-53V

Current : 3.5-5A

LED Chips : Optional(LG/Epileds/ Seoul)

Encapsulation process : 3.0mm High temperature quartz lens package

View Angle of the Lens : 60,120 degree

Warranty : 2 Years

Contact Now

UV LED Module 280W uv curing 3535 lamp beads high power uv led quartz lens

UV LED Module Product Description
The UV LED Module can be applied with either Water-cooling or wind-cooling method.
Various powers, sizes, and circuits can be customized according to your requirements, including mixed bands.
Apply in various printing industries, painting, and glue.

Item	UV LED Module
Power	280w
Color	UV
Number of lamp beads	98 pcs
Diode type	3535 smd
Lens Material of Diode	Silica gel or quartz
View Angle of the Lens	60, 120 degree
Module size	68mm81mm3.0mm
Luminous Size	65mm*60mm
Wavelength	365nm,385nm,395nm,405nm
Voltage	47-53V
Current	3.5-5A
Chip Material	LG,Seoul,Epileds
Encapsulation process	3.0mm High temperature quartz lens package
Lifespan (hours)	20000-30000
Warranty	2 years
Application	Apply in various printing industries, painting, and glue.
Place of Origin	Shenzhen, Guangdong, China

FAQ

Q1. Are you a factory?
A. Yes! We are factory in Shenzhen. We have been producing UV LED products for seven years.

Q2. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.

Q3. What is your main products?
A. UV LED Lamp Bead,UV LED Module,UV LED Single Light,UV LED curing equipment.

Q4: How many years of warranty of your products?
A: We offer 2 year warranty time. If there is any problem during the warranty time, please contact us

and we will change or repair them for you.

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
